Paper and Cardboard Galvo Laser Cutter
▶ Ultra-speed paper cutter with laser (both paper engraving and cutting)
Technical Data
| Working Area (W * L) | 400mm * 400mm (15.7” * 15.7”) |
| Beam Delivery | 3D Galvanometer |
| Laser Power | 180W/250W/500W |
| Laser Source | CO2 RF Metal Laser Tube |
| Mechanical System | Servo Driven, Belt Driven |
| Working Table | Honey Comb Working Table |
| Max Cutting Speed | 1~1000mm/s |
| Max Marking Speed | 1~10,000mm/s |
Structure Features
Red-Light Indication System
Identify the Processing Area
The red light indication system indicates the practical engraving position and path so as to accurately place the paper at the proper position. That's significant for accurate cutting and engraving.
Exhaust Fan
For the galvo marking machine, we install the side ventilation system to exhaust the fumes. The strong suction from the exhaust fan can absorb and dispel the fume and dust, avoiding cutting error and improper edge burning. (Besides, to meet the better exhausting and come in a more safe working environment, MimoWork provides the fume extractor to clean the waste.)
▶ Achieve your laser cutting paper design
Upgrade Options for Paper Laser Cutting
- For Printed Paper
CCD Camera can recognize the printed pattern and direct the laser to cut along the pattern outline.
Besides the general configuration, MimoWork provides the enclosed design as the upgrade scheme for the galvo laser marker. Details to check out the Galvo Laser Marker 80.
Let's know your specific requirements and offer exclusive solutions for you!
Can a Galvo Laser Cut Paper?

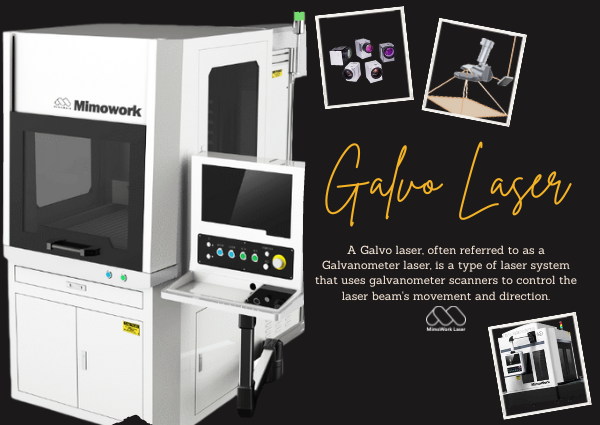

Galvo lasers, also known as galvanometer laser systems, are commonly used for high-speed and precision laser cutting and engraving on a variety of materials, including paper. They are particularly well-suited for intricate and detailed designs on paper due to their rapid scanning and positioning capabilities to make invitation cards.
Here's how Galvo Lasers can Cut Invitation Paper:
1. High-Speed Scanning:
Galvo lasers use rapidly moving mirrors (galvanometers) to direct the laser beam precisely and quickly across the surface of the material. This high-speed scanning allows for the efficient cutting of intricate patterns and fine details on paper. Normally, the Galvo laser can deliver tens of times faster production speed than a traditional flatbed laser cutting machine.
2. Precision:
Galvo lasers offer excellent precision and control, allowing you to create clean and intricate cuts on paper without causing excessive charring or burning. The majority of Galvo lasers use RF laser tubes, which deliver much smaller laser beams than the regular glass laser tubes.
3. Minimal Heat-Affected Zone:
The speed and precision of galvo laser systems result in a minimal heat-affected zone (HAZ) around the cut edges, which helps prevent paper from becoming discolored or distorted due to excessive heat.
Using Galvo Laser Cut 10 Layers of Paper
Galvo Laser Engraving Invitation Paper
4. Versatility:
Galvo lasers can be used for a wide range of paper applications, including cutting, kiss-cutting, engraving, and perforating. They are commonly used in industries such as packaging, printing, and stationery for creating custom designs, patterns, invitation cards, and prototypes.
5. Digital Control:
Galvo laser systems are often controlled by computer software, allowing for easy customization and automation of cutting patterns and designs.
When using a galvo laser to cut paper, it's important to optimize the laser settings, such as power, speed, and focus, to achieve the desired results. Additionally, testing and calibration may be necessary to ensure the accuracy and quality of the cuts, especially when working with different paper types and thicknesses.
Overall, galvo lasers are a versatile and efficient choice for cutting paper and are commonly used in various industries for a wide range of paper-based applications.
Laser Applications on Paper
▶ Video Display
✔ Smooth and crisp cutting edge
✔ Flexible shape engraving in any directions
✔ Clean and intact surface with contactless processing
✔ High repetition due to digital control and auto-processing
▶ Kiss Cutting
Different from laser cutting, engraving, and marking on paper, kiss cutting adopts a part-cutting method to create dimensional effects and patterns like laser engraving. Cut the top cover, the color of the second layer will appear.
▶ Other Paper Samples
▶ Printed Paper
For the printed and patterned paper, accurate pattern cutting is necessary to achieve a premium visual effect. With the assist of the CCD Camera, Galvo Laser Marker can recognize and position the pattern and strictly cut along the contour.
• Brochure
• Business Card
• Hanger Tag
• Scrap Booking
