Laser Cutting Holes for Fabric Duct

Professional and qualified Fabric Duct Laser Perforating

Revolutionize fabric duct systems with MimoWork's cutting-edge technology! Lightweight, noise-absorbing, and hygienic, fabric ducts have gained popularity. But meeting the demand for perforated fabric ducts brings new challenges. Enter the CO2 laser cutter, widely used for fabric cutting and perforation. Boosting production efficiency, it's perfect for ultra-long fabrics, with continuous feeding and cutting. Laser micro perforation and hole cutting are done in one go, eliminating tool changes and post-processing. Simplify production, save costs, and time with precise, digital fabric laser cutting.

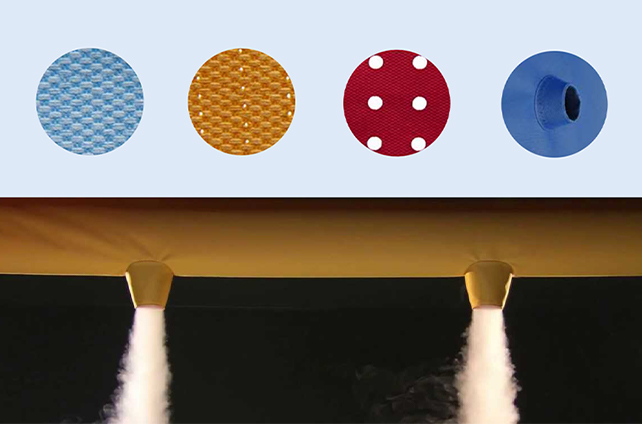

fabric duct laser cutting

Video Glance

video description:

Dive into this video to witness the cutting-edge technology of automatic fabric laser machines, perfect for industrial applications. Explore the intricate fabric laser cutting process and observe how holes are effortlessly formed with a textile duct work laser cutter.

Laser perforations for fabric duct

◆ Precise cutting - for various hole layouts

Smooth & clean edge - from thermal treatment

Uniform hole diameter - from high cutting repeatability

The use of fabric ducts made of technical textiles is now becoming more common in modern air distribution systems. And the designs of various hole diameters, hole spacing, and the number of holes on the fabric duct require more flexibility for processing tools. No limit on cut pattern and shapes, laser cutting can be perfectly qualified for it. Not only that, wide materials compatibility for technical fabrics make the laser cutter become the ideal choice for most manufacturers.

Roll to Roll Laser Cutting & Perforations for Fabric

This innovative approach utilizes advanced laser technology to seamlessly cut and perforate fabric in a continuous roll, tailored specifically for air duct applications. The precision of the laser ensures clean and intricate cuts, allowing for the creation of precise perforations essential for optimal air circulation.

This streamlined process enhances efficiency in fabricating fabric air ducts, offering a versatile and high-precision solution for industries seeking customized and superior-quality duct systems with the added benefits of speed and accuracy.

Benefits from Laser Cutting Holes for Fabric Duct

✔  Perfectly smooth clean cutting edges in a single operation

✔  Simple digital and automatic operation, saving labors

✔  Continuous feeding and cutting through conveyor sytem

✔  Flexible processing for holes with multi-shapes and diameters

✔  Clean and safe environment on the support of fume extractor

  No any fabric distortion thanks to non-contact processing

✔  High-speed & precise cutting for plenty of holes within a short time

Laser Hole Cutter for Fabric Duct

flatbed laser cutter 160 for fabric, leather, foam, felt, etc.

Flatbed Laser Cutter 160

• Laser Power: 100W/150W/300W

• Working Area: 1600mm * 1000mm (62.9” * 39.3 ”)

extension laser cutter for fabrics and cloth

Flatbed Laser Cutter 160 with extension table

• Laser Power: 100W/150W/300W

• Working Area: 1600mm * 1000mm (62.9” * 39.3 ”)

Extended Collecting Area: 1600mm * 500mm

 Flatbed Laser Cutter 160L for fabrics, industrial laser cutting machine for large format fabric cutting

Flatbed Laser Cutter 160L

• Laser Power: 150W/300W/500W

• Working Area: 1600mm * 3000mm (62.9’’ *118’’)

Material information of Laser Hole Cutting Fabric Duct

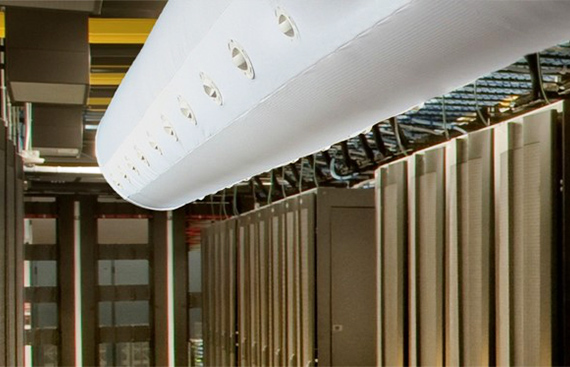

air dispersion laser cutting

Air dispersion systems typically use two main materials: metal and fabric. Traditional metal duct systems discharge air through side-mounted metal diffusers, resulting in less efficient air mixing, drafts, and uneven temperature distribution in the occupied space. In contrast, fabric air dispersion systems feature uniform holes along the entire length, ensuring consistent and even air dispersion. Micro-perforated holes on slightly permeable or impermeable fabric ducts allow for low-velocity air conveyance.

The fabric air duct is definitely a better solution for ventilation while it is a big challenge to make the constant holes along the 30 yards long/or even longer fabrics, and you have to cut the pieces out besides making the holes. Continuous feeding and cutting will be achieved by MimoWork Laser Cutter with the auto-feeder and conveyor table. In addition to the high speed, precise cutting and timely edge sealing give the guarantee for excellent quality. Reliable laser machine structure and professional laser guide & service are always the keys for us to be your trusted partner.

Common materials about fabric duct

polyester

• polyether

• polyethylene

nylon

glass fiber

• multi-layer coated materials

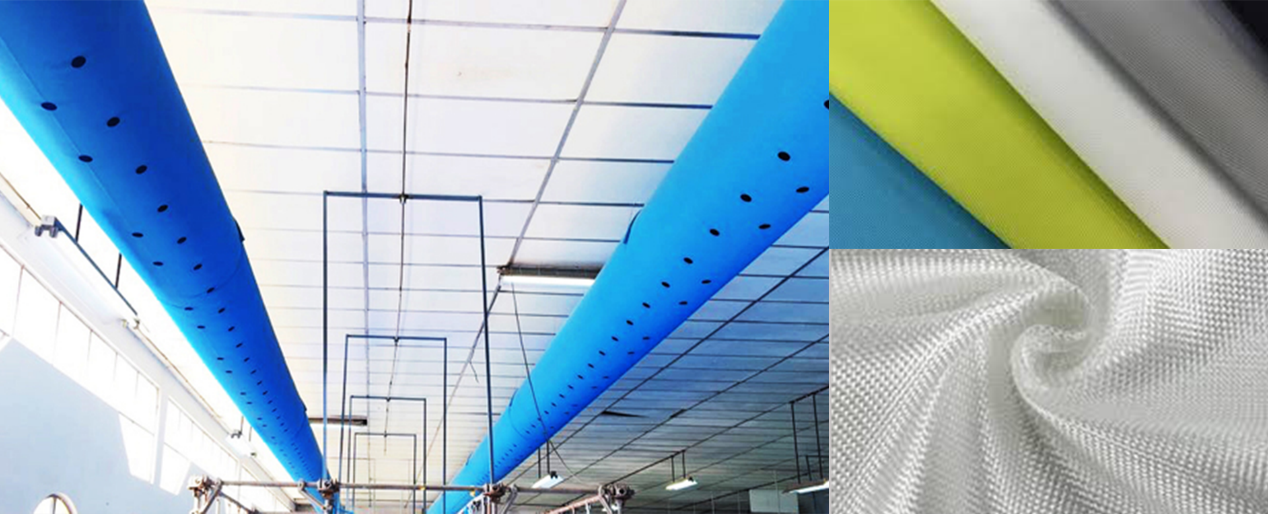

fabric duct
